Centro de Protonterapia Quirónsalud / ENERO Arquitectura + IDOM

Centro de Protonterapia Quirónsalud (Pozuelo de Alarcón, Madrid, España) por ENERO Arquitectura + IDOM. ENERO Arquitectura ha realizado el Proyecto de Arquitectura y la Dirección de Obra del primer Centro de Protonterapia en España, con la colaboración de IDOM en la ingeniería del proyecto. La Protonterapia es en la actualidad la técnica radioterápica más avanzada y segura para tratar determinados tipos de cáncer. Consiste en generar un haz de protones para irradiar el tejido afectado por un tumor. Aplicados en dosis específicas, los protones pueden actuar con precisión en el interior de los tejidos, consiguiendo una mayor actividad antitumoral y generando un menor daño en el tejido sano. Por ello, esta terapia está indicada en pacientes pediátricos y en determinados tipos de tumores.

IDOM ha participado en el diseño y construcción del primer centro de tratamientos Oncológicos mediante Protonterapia construido en España, que comenzará a tratar pacientes a finales del año 2019. Los trabajos desarrollados por el equipo de IDOM han consistido en la dirección y coordinación general del Proyecto, la redacción de los diferentes proyectos de Ingeniería de Estructuras e Instalaciones, así como los Servicios Nucleares necesarios para el proceso de Licenciamiento de la Instalación ante el Consejo de Seguridad Nuclear. También ha realizado la dirección de las obras de Ingeniería y la coordinación de la Instalación del Equipo durante la ejecución de las obras. El carácter multidisciplinar del Equipo de IDOM ha permitido ofrecer al cliente un servicio integral, especialmente adecuado para Proyectos de esta complejidad.

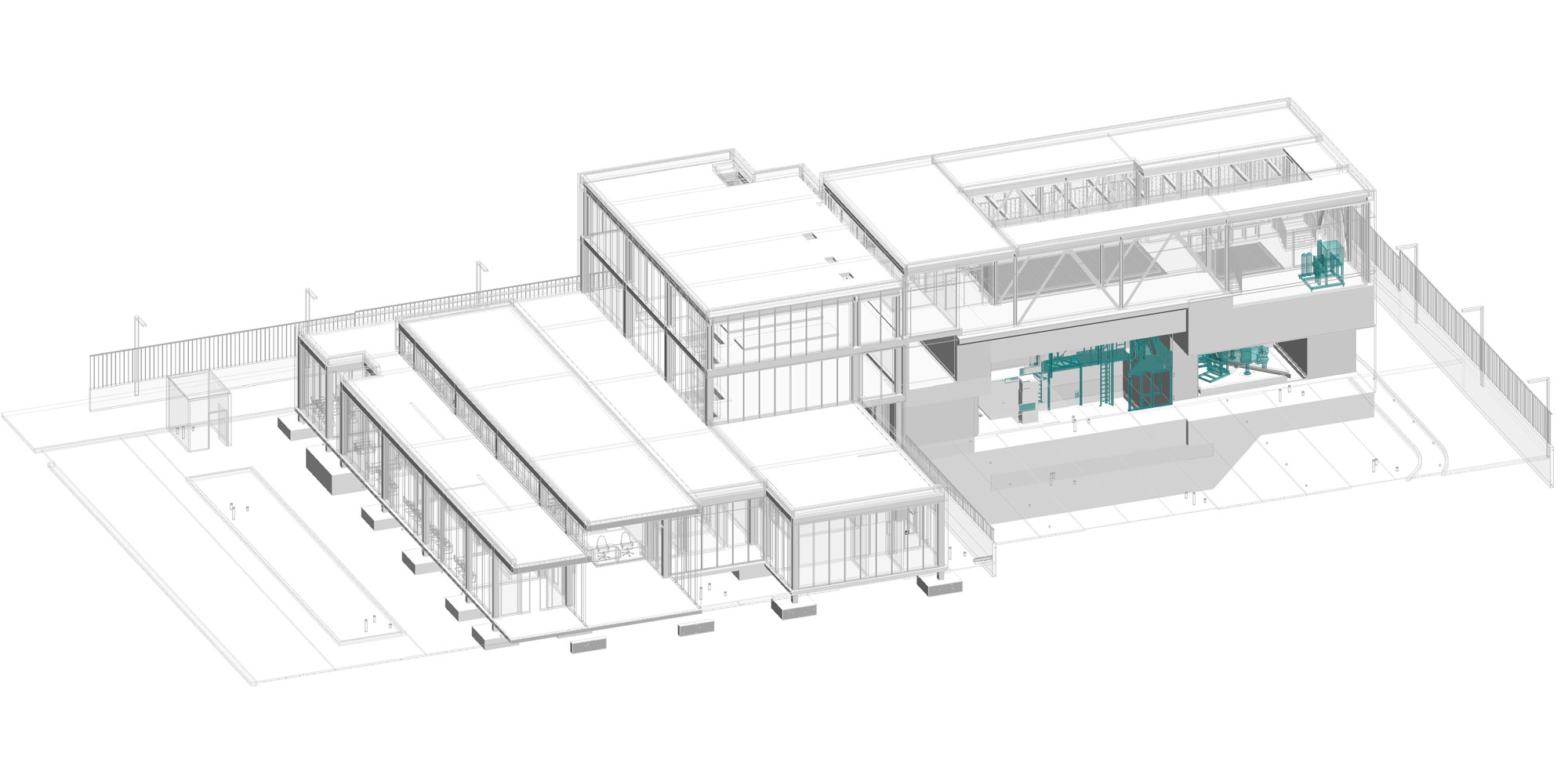

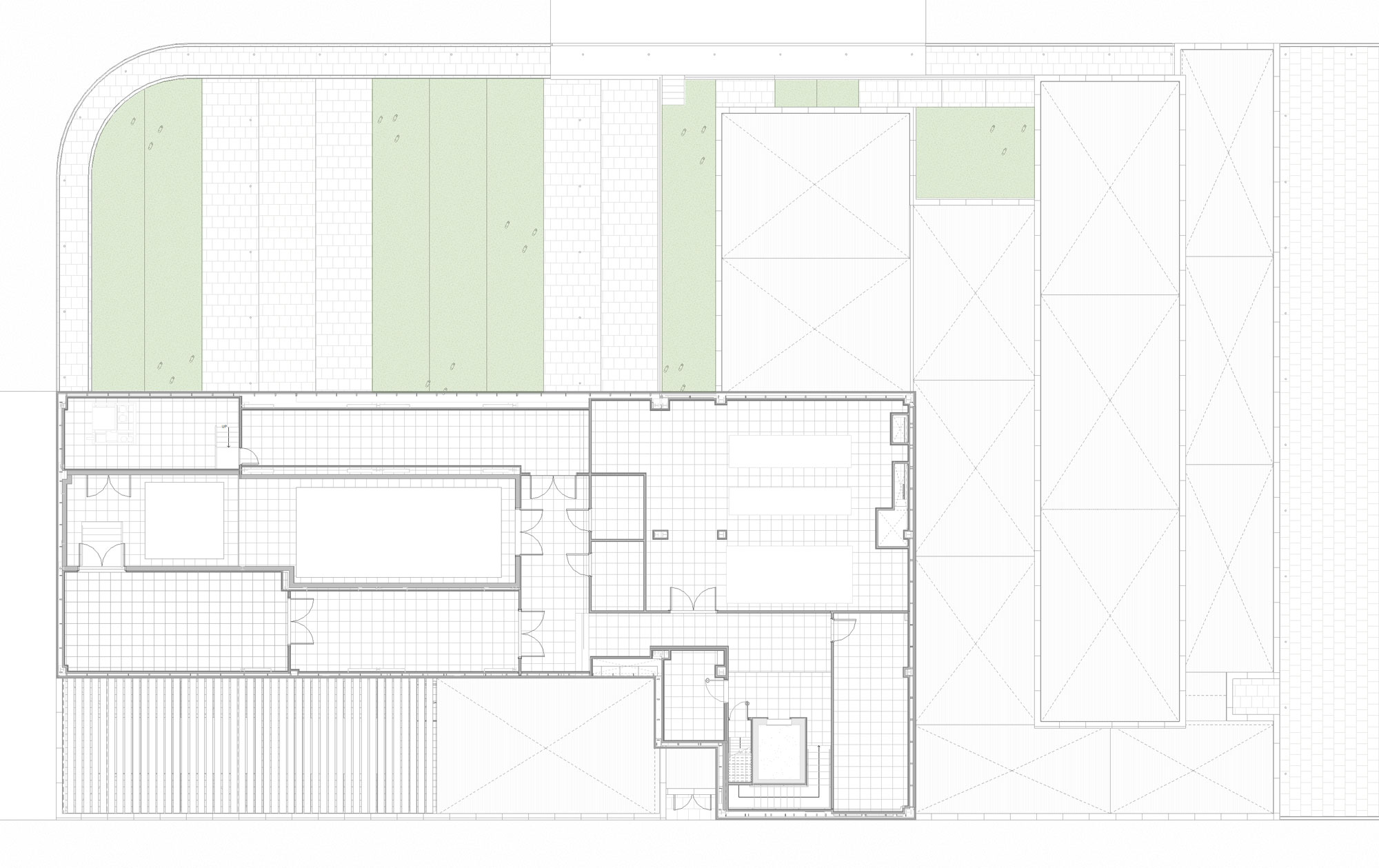

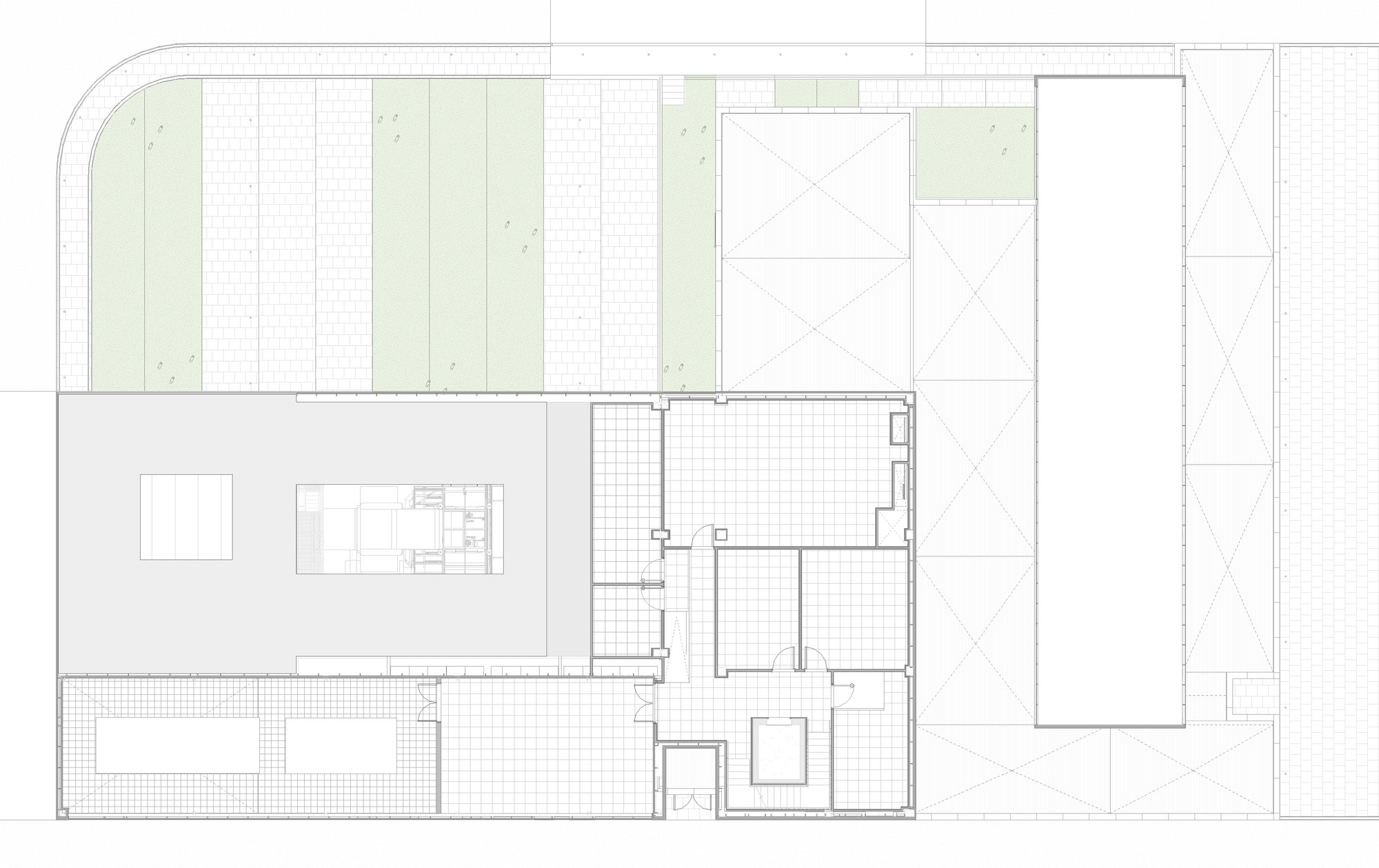

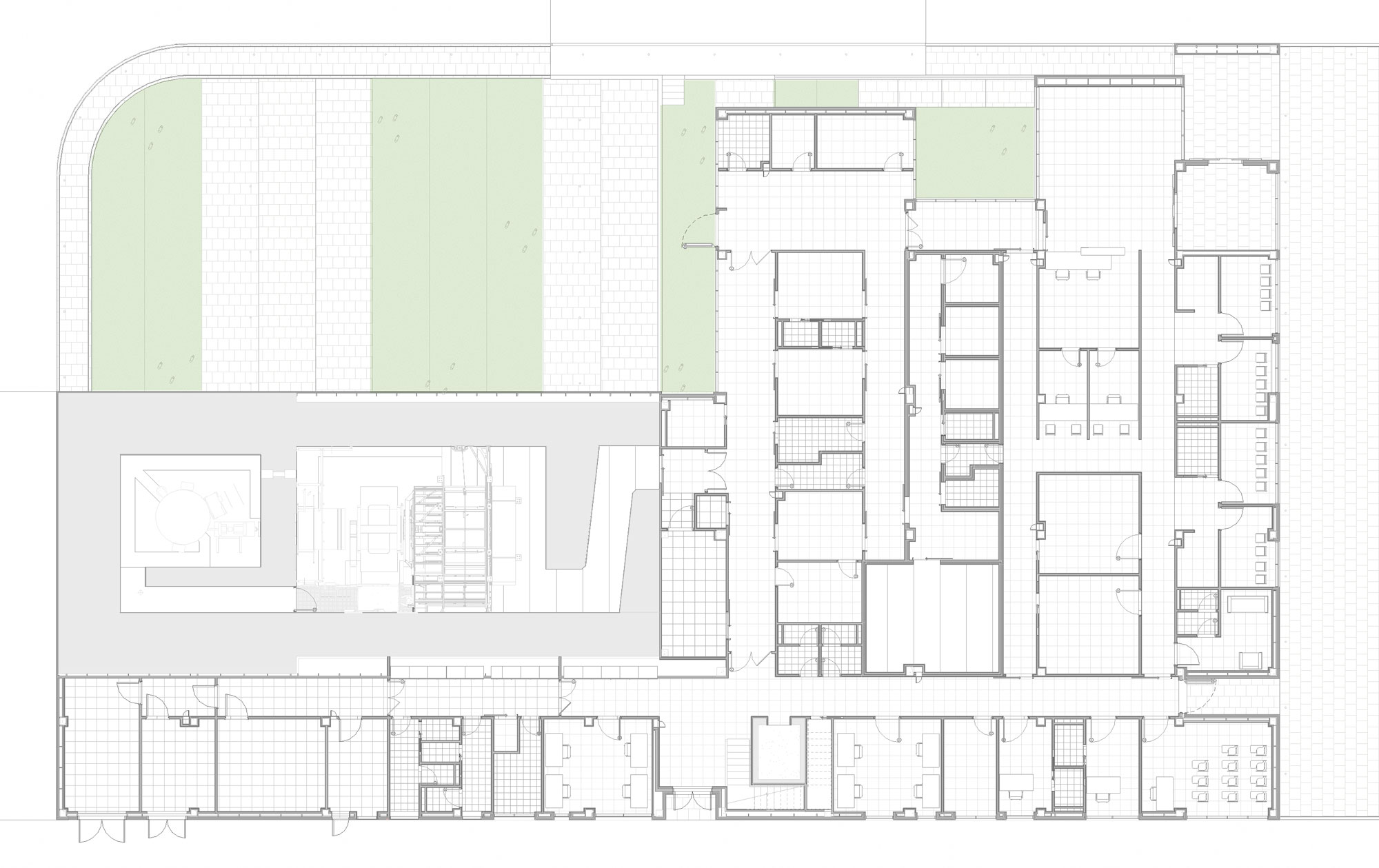

El Centro de Protonterapia tiene una superficie construida 2.380 m2. Se organiza en tres áreas diferenciadas; la primera es la Asistencial-Clínica, dotada de consultas, área de diagnóstico (preparada para un PET-TAC) y área de despachos médicos y formación. La segunda es el área de tratamiento con protones, que contiene la sala de control y el búnker donde se encuentran la sala de tratamiento, el Gantry y la sala del ciclo-sincrotrón. Por último, están el resto de los cuartos destinados a almacenes, mantenimiento e instalaciones que sirven al edificio.

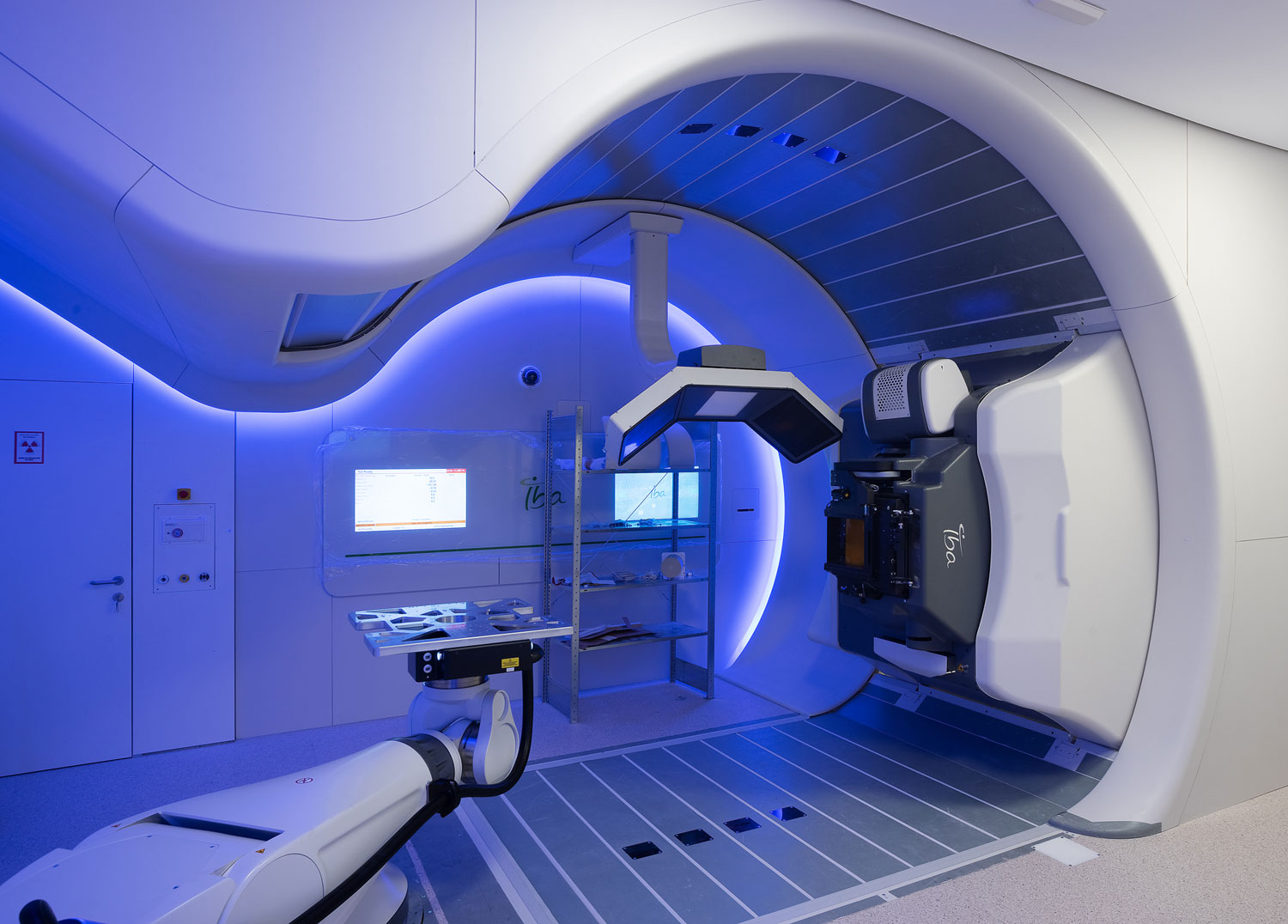

El equipo instalado cuenta con un sincrociclotrón que genera y acelera los protones hasta energías de 230 MeV y con un sistema de guiado y modulación del haz de protones de grandes dimensiones que dirige la radiación a la zona del paciente a tratar. El sistema de terapia de protones, denominado Proteus One® de IBA, incorpora un sistema de escaneado del tumor para facilitar al médico la aplicación de la dosis más adecuada en cada área a tratar. Cuenta con los equipos más avanzados de toma de imágenes y puede girar 220 grados sobre el paciente para aplicar el haz de protones desde cualquier ángulo.

Ficha técnica
Nombre: Centro de Protonterapia Quirónsalud
Ubicación: Calle Virgilio 5, Pozuelo de Alarcón, Madrid, España
Cliente: Radioterapia de Protones S.L – QuirónSalud
Proyecto y Dirección de Obra de Arquitectura: ENERO Arquitectura
Arquitecto responsable: Francisco Ortega Montoliu
Director de proyecto: Francisco Ortega Montoliu y Alberto Sáez
Dirección y Coordinación del Proyecto, Proyecto y Dirección de Obra de Estructuras, Proyectos y Dirección de Obra de Instalaciones, Dirección de Ejecución de las Obras, Servicios Nucleares (Redacción de la Solicitud de Licenciamiento para Autorización de Funcionamiento de la Instalación Radioactiva. Verificación y cálculo de blindajes para Protección Radiológica): IDOM
Arquitecto responsable IDOM: Pablo Elorz Gaztelu (Director de Proyecto)
Arquitectos: Pablo Elorz Gaztelu, Elsa Candau
Ingenieria: Carlos Trujillano
Servicios nucleares: Óscar Larrosa Peruga, Belén Martínez Carmona, Carlos Puras González
Costes: Gemma Borrega Baos
Estructuras: Carlos Castañón, Beatriz Suárez Pardo, Romina González, Jorge de Prado
Instalaciones hidráulicas: Jaled Salman
Seguridad contra incendios: Héctor Mayordomo
Climatización: Juan Díaz Garrido, Antonio Villanueva, Isaac Lorenzo
Eficiencia energética y sostenibilidad: Ramón Gutierrez, Javier Martín
Instalaciomes eléctricas: Carlos Trujillano
Voz y datos, telecomunicaciones: Cristina Rubio Guerrero
Instalaciones especiales: Jaled Salman, Javier Castrillón González
Acústica: Mario Torices
Administrativos: Vanesa Marrero Castro, Isabel Cantero Murillo
Dirección de obra: Pablo Elorz Gaztelu, Beatriz Suarez Pardo, Isaac Lorenzo, Carlos Trujillano
Dirección de ejecución obra: Gemma Borrega Baos
Superficie: 2380 m2
Fecha: abril 2017 a marzo 2019 (finalizado)
Fotografía: Jorge Allende

Contacto
ENERO Arquitectura: https://www.eneroarquitectura.com
IDOM: http://www.idom.com

English version

Quironsalud Proton Therapy Centre

Proton Therapy is at present the safest and most advanced radiotherapy technique there is to treat certain types of cancer. It involves generating a beam of protons to radiate the tissue affected by a tumour. Applied in specific doses, the protons can act with precision inside the tissue, achieving greater antitumoural activity and causing less damage to the healthy tissue. For this reason, this technique is appropriate for paediatric patients and on certain kinds of tumour.

IDOM has been involved in the design and construction of the first oncology treatment centre based on proton therapy ever built in Spain, which will start to treat patients at the end of 2019.

The work carried out by IDOM involved the project’s general coordination and management, preparing the different building services and structural projects as well as the required nuclear services in order to have the facilities licensed by the Nuclear Safety Board. We also supervised the engineering works and coordinated the fitting of the equipment while the building work was underway. The architectural project and site supervision were taken care of by ENERO Arquitectura.

The multidisciplinary character of IDOM’s team has made it possible for us to offer the client a comprehensive service, particularly appropriate for projects of this complexity.

The Proton Therapy Centre has a built-up area of 2,380 m2. It is organised in three different areas. The first is the Clinic, that has consultations rooms, diagnostics areas (ready for a PET-CT), training areas and doctor’s offices. The second is the proton treatment area, which includes a control room and a bunker that holds the treatment room, the Gantry and the synchrotron. Lastly, all the other rooms used for storage, maintenance and building services.

The equipment installed includes a synchrotron that generates and accelerates protons up to energy levels equal to 230 MeV and a big guidance and modulation system for the proton beam that directs the radiation to the part of the patient that needs treatment. The proton therapy system, called Proteus One® by IBA, incorporates a tumour scanning system to makes it easier for the doctor to apply the most adequate dose to each area. It is fitted with the very latest in imaging technology and it can rotate 220 degrees around the patient to apply the beam of protons from any angle.
